Description
• Constant Current LED Driver
• Circuit Type: Bipolar non-isolated
• Pout: 200W Max.
• 0/1-10V Dimming, Dim-to-Off
• Input voltage range: 277 to 480 VA/50-60Hz
• PF: ≥0.90 @277- 480Vac 80%full load
• THD: @277- 480Vac 80%full load
• Input Inrush current: ≤120A @ 80Vac 100%
• 100% load at 480Vac input cold start
• Max input current: 820A at 277Vac.
• Load Regulation: ±5%
• Turn-on Delay Time: 750 ms at 277Vac.
• No Load Power: ≤5W
• Flicker: ≤5%

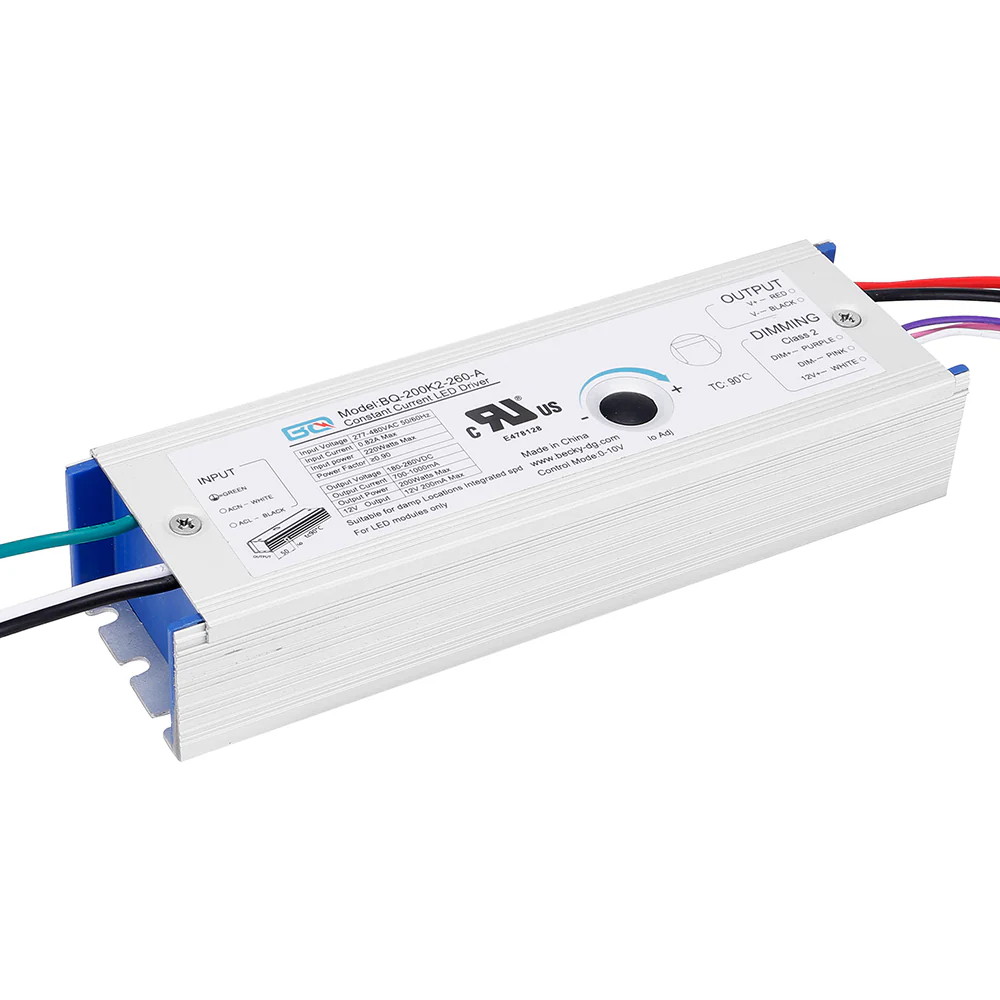

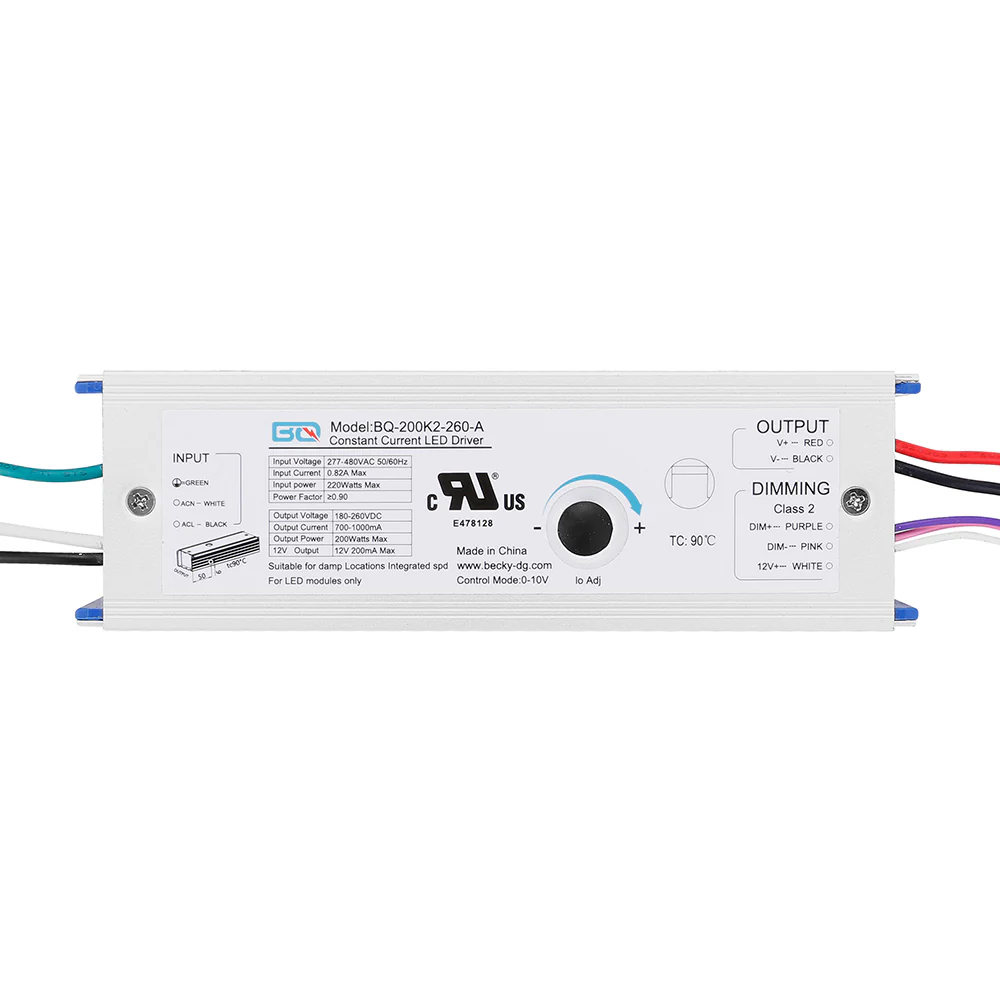

Model: BQ-200K2-260-A
DOWNLOAD: DATA SHEET
NOTE: THIS IS A NON-RETURNABLE ITEM
