• Constant Current LED Driver
• Circuit Type: Unipolar non-isolated
• Pout: 120W Max.
• 0/1-10V Dimming
• Input voltage range: 120 to 277 VA/50-60Hz
• PF: ≥0.90 with 70~100% load condition (for all output currents)
• THD: ≤20% more than 70% load, at 277V input
• Input Inrush current: ≤60A at 25°C, 277Vac, cold start
• Max input current: 1.25A at 120Vac.
• Load Regulation: ±3%
• Turn-on Delay Time: ≤0.75s at 120Vac.
• Leakage current: Max.0.5mA at 120Vac/60Hz
• Overshoot: ≤10% at full load condition
• No Load Power: ≤3W
• Flicker: ≤30%
• Ripple Voltage: ≤13V
• Over voltage protection Hiccup mode
• Output short circuit protection: Auto recovery

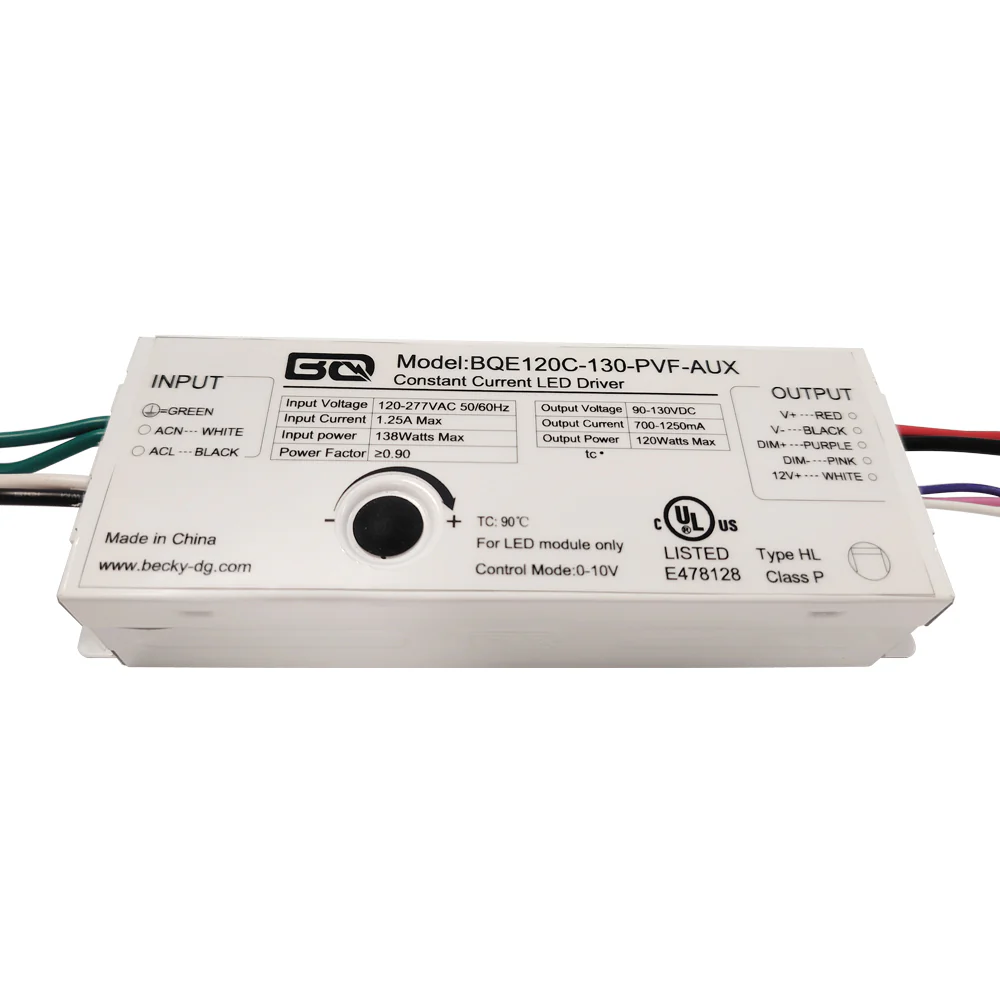

Model: BQE120C-130-PVF-AUX
DOWNLOAD: DATA SHEET
NOTE: THIS IS A NON-RETURNABLE ITEM
