Description
• Power supply: 12V-24V DC, >30mA
• Dim Control Output: 0-1 0V, max. 25mA sinking current
• Remote Range: 50ft. (15m) indoor, no backlight
• Detection Radius: 20%/50%/75%/100%(1-8m)
• Mounting Height: Max 40fl.(12meters)
• Time Setting: 10s/1min/5min/10min/15min/20min/30min/60min
• Light-Control: 24H/10LUX/30LUX/50LUX
• Temperature: - F-+140° F (-20°C-+60°C)
• IP rating: IP65
• Remote Control Optional

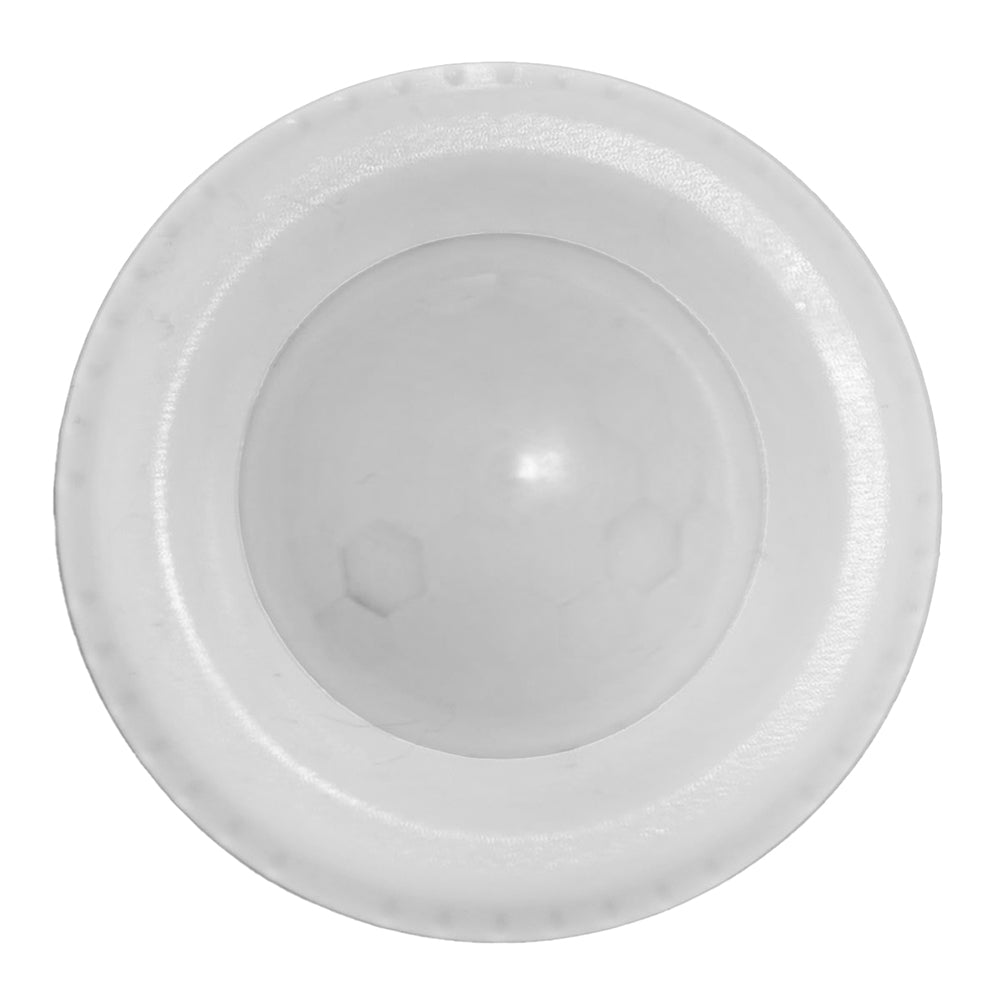

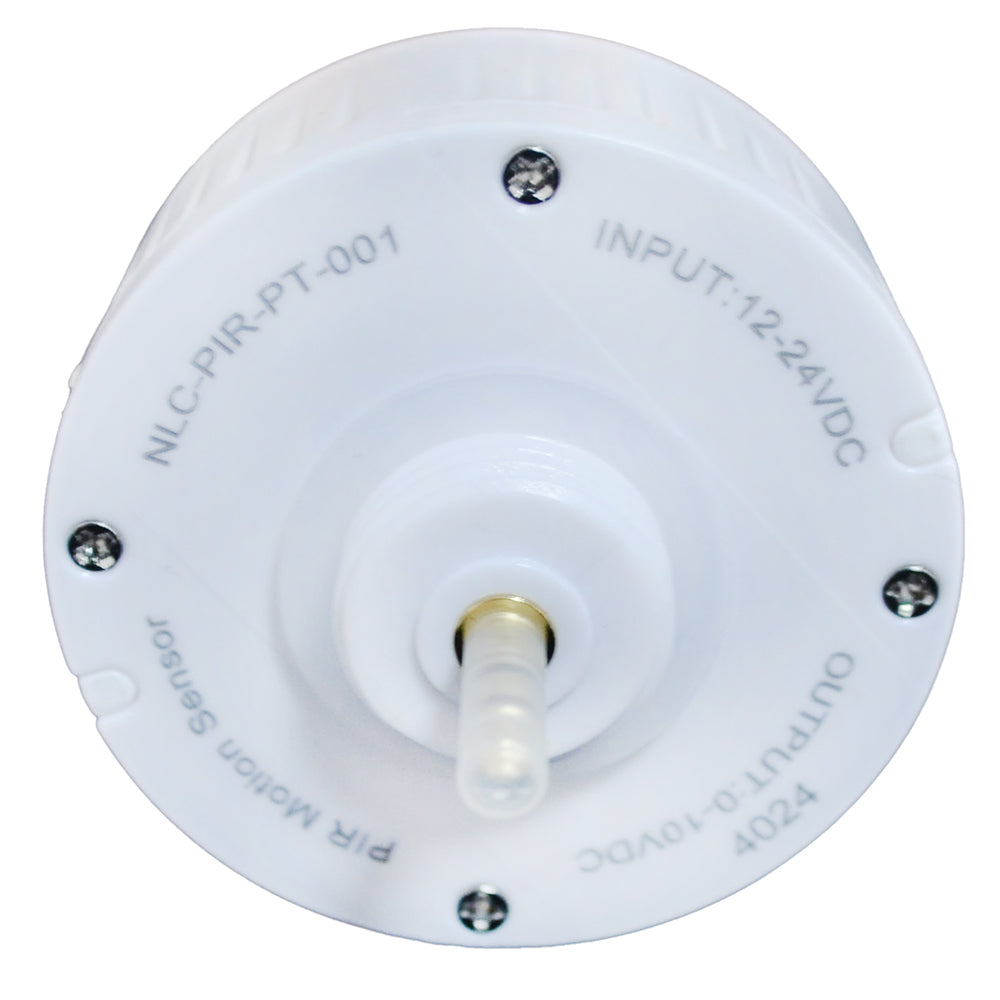

Model: NLC-PIR-PT-001
DOWNLOAD: DATA SHEET
