• Power: 75W
• Input: AC:120-277 V~ 50/60 HZ
• Min. Mains Voltage Operational 108 Vac
• Max. Mains Voltage Operational 305 Vac
• Maximum Open Circuit Voltage < 60Vdc, Class 2 output
• Output Current Ripple: (ripple = peak to average/average) 15% max @ max Iout
4% max @ visible for stroboscopic frequency range 60Hz-3KHz
• 0-10V Dimming 150μA source current from driver (1%)
• AOC (Adjustable Output Current) 0.1A-2A via external resistor and SimpleSet programming
• Operating Ambient Temp. Range: -20°C to +50°C
• Max. Case Temperature (Tcase): 80°C
• Agency Approbations UL8750, UL991, cUL, Class P (UL, cUL)
Electromagnetic Compliance FCC Title 47 Part 15 Class A, CAN ICES-005 (A) / NMB-005 (A)
• Audible Noise <24dB Class A

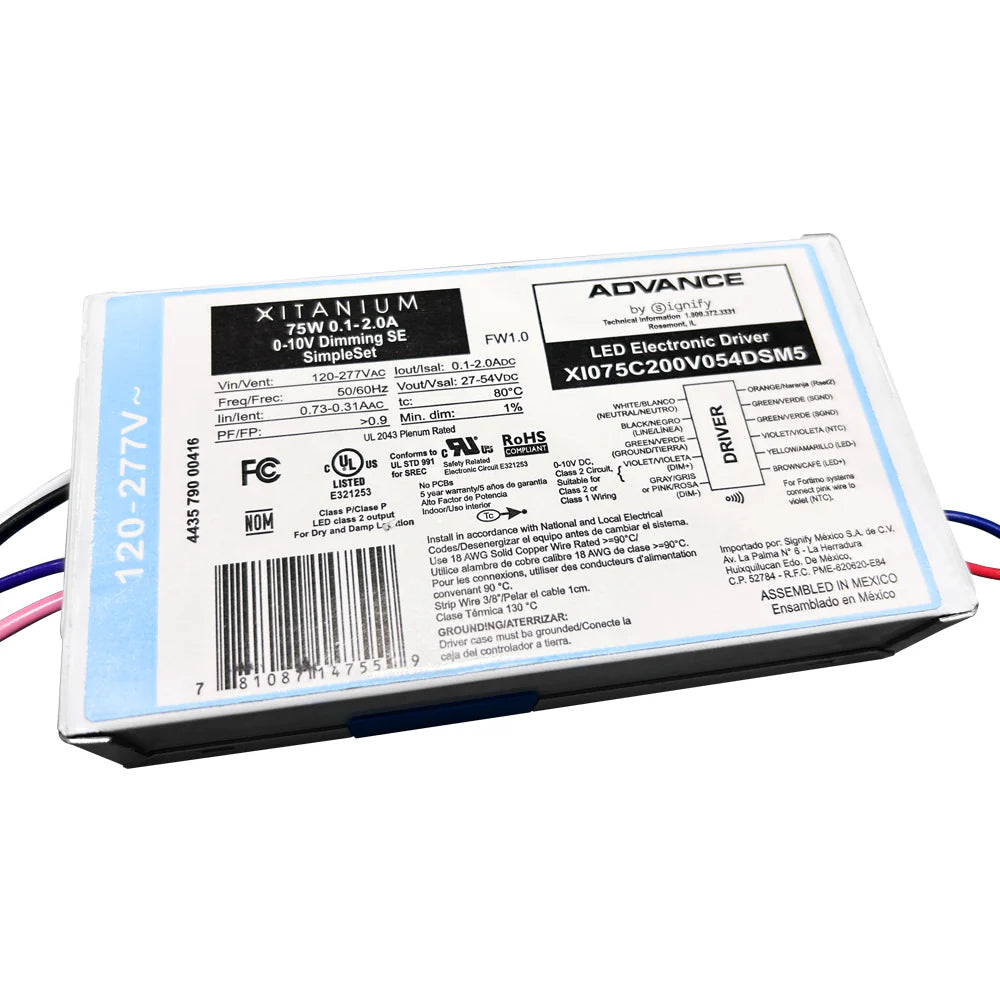

Model: XI075C200V054DSM5
DOWNLOAD: DATA SHEET
NOTE: THIS IS A NON-RETURNABLE ITEM
